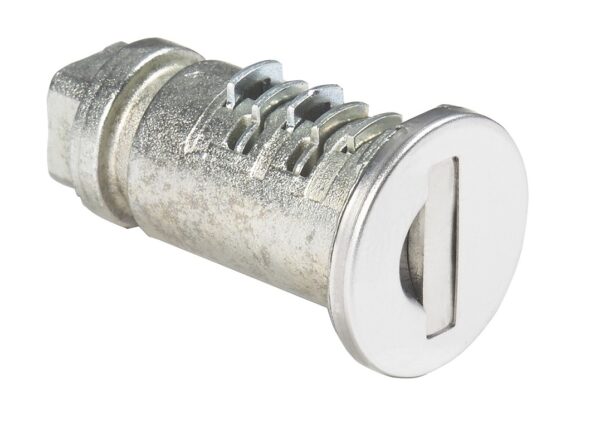

22.8mm Barrel F715
A series of 22.8mm assembled barrels available in zinc plate or zinc passivated. These barrels are capped and are complete with a dust cover to help limit the ingress of dirt and dust.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cap | Finish | Head Shape | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| F715 (9000) | 500 | 22.8 | 17 | 2.7 | Dust Cover | Zinc Plate | Round | Contact Sales | |
| F715 (A.C.E.Y) | Contact sales | 22.8 | 17 | 2.7 | Dust Cover | Zinc Passivated | Round | Contact Sales |
Standard Features
- Combinations: 500 (9000 series); contact sales dept for A. C. E. Y series
- Standard finish: Stainless steel cap; Zinc plated body
Additional Information
22.8mm Barrel F715 technical drawing
