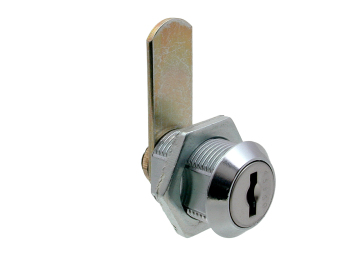

22.4mm Cam Lock B356
A series of 22.4mm cam locks in bright chrome or nickel. With shuttered versions available, these cam locks are ideal for numerous applications including Automotive Accessories and Healthcare.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Movement | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B290 | Nut mounting | 2000 | 22.4 | 25 | 4.5 | Bright Chrome | Cylindrical | 17 | 8 | Standard | Contact Sales | |
| B356 | Nut mounting | 2000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 17 | 1, 2, 3 | Standard | Contact Sales | |
| C581 | Nut mounting | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 17 | 1, 2, 3 | Standard | Contact Sales | |
| C602 | Nut mounting | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 17 | 8 | Shuttered | Contact Sales | |
| C732 | Nut mounting | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 17 | 1, 2, 3 | Shuttered | Contact Sales | |

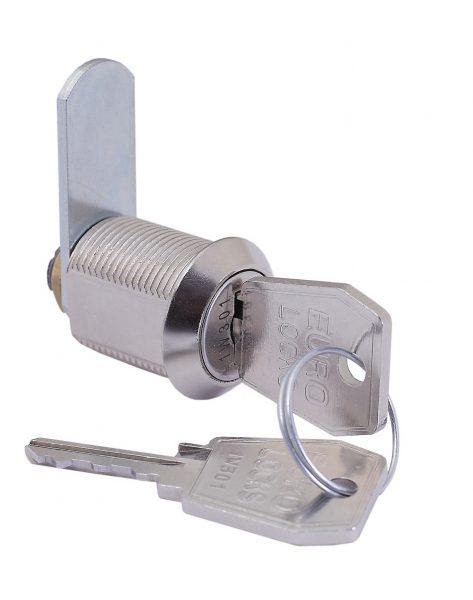

| D400 | 2000 | 22.4 | 25 | 4.5 | Nickel | Round | 17 | 1, 2, 3 | Standard | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3
- Lock Combinations: 2000-10000 (D400 = 2000 or 3000 to order)
- Standard finish: Bright chrome
- Mounting hole shape: Double D (B290 Special – refer to technical drawing)
- M Keyed system supplied to order only
- Comprehensive range of Cams available: See Cams
Additional Information
22.4mm Cam Lock B356 technical drawing
