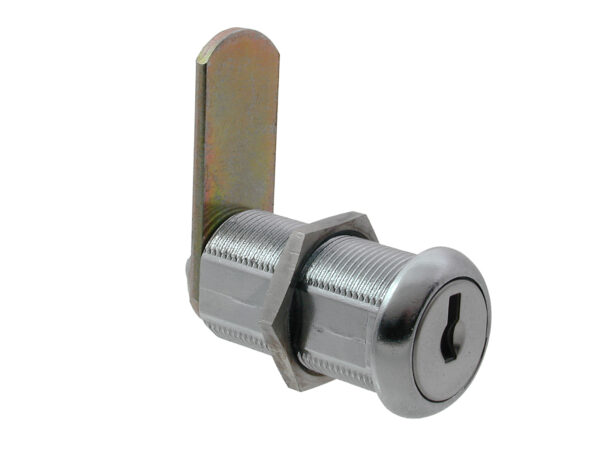

22 – 32mm Cam Lock 1342
A wide range of cam locks available in 3 housing lengths; 22mm, 27mm and 32mm.
Lock Description
They can be used in various applications including Lockers and Metal and Wooden Office Furniture.
Have a question?
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Cap | Finish | Head Shape | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1340 | Nut mounting | 200 | 22 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | |
| 1341 | Nut mounting | 200 | 27 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | |
| 1342 | Nut mounting | 200 | 32 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | |
| 1384 | 200 | 22 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| 1385 | 200 | 27 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| 1386 | 200 | 32 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| 1440 | 2000 | 22 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| 1441 | 2000 | 27 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| 1484 | 2000 | 22 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| 1485 | 2000 | 27 | 22 | 5 | Capped | Bright Chrome | Round | Contact Sales | ||
| B441 | Nut mounting | 200 | 27 | 24.7 | 4.4 | Capped | Bright Chrome | Conical | Contact Sales | |
| B442 | Nut mounting | 200 | 32 | 24.7 | 4.4 | Capped | Bright Chrome | Conical | Contact Sales |
Standard Features
-
- Standard movements: 1, 2, 3, 4, 5, 6
- Lock Combinations: 200-2000
- Standard finish: Bright chrome, stainless steel cap
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Note: housing nut can only be fitted or removed if cam is removed first
We recommend the use of Washer 7005201 when fitting to wooden panels:
- Dimension ‘B’ Specification: See Cams
Additional Information
22 - 32mm Cam Lock 1342 technical drawing
