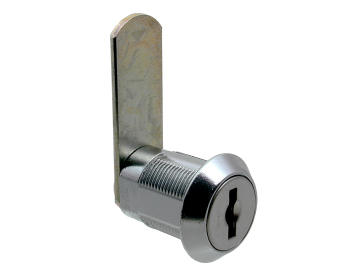

22.2mm – 22.4mm Cam Lock B561
A series of 22.2mm and 22.4mm cam locks in bright chrome. These cam locks are ideal for numerous applications including Healthcare and Automotive Accessories.
Lock Options
| Product Code | Key Series | Mounting Hole Size | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0815 | 17.6 x 20.1 | Nut mounting | 2000 | 22.4 | 24 | 4.5 | Bright Chrome | Conical | 10 | Standard | Contact Sales | |
| 0865 | 17.6 x 20.1 | Nut mounting | 2000 | 22.4 | 24 | 4.5 | Bright Chrome | Conical | 10 | Shuttered | Contact Sales | |
| B561 | 16.6 x 19.1 | 2000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 10 | Standard | Contact Sales | ||
| B938 | 16.6 x 19.1 | Nut mounting | 2000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 10 | Standard | Contact Sales | |
| B962 | 16.6 x 19.1 | Nut mounting | 200 | 22.2 | 22.5 | 4.5 | Bright Chrome | Conical | 10 | Shuttered | Contact Sales | |
| C527 | 17.6 x 20.1 | Nut mounting | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 10 | Shuttered | Contact Sales | |
| C731 | 16.6 x 19.1 | Nut mounting | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | Conical | 10 | Shuttered | Contact Sales |
Standard Features
- Standard movements: 1, 3, 4 (B962 1, 2, 3, 4 only)
- Lock Combinations: 200-10000
- Standard finish: Bright chrome
- Mounting hole shape: Double D (refer to technical drawing)
- M Keyed system supplied to order only
- Cam fixing: B938 cam fixed by nut and washer
- Comprehensive range of Cams available: See Cams
Additional Information
22.2mm - 22.4mm Cam Lock B561 technical drawing
