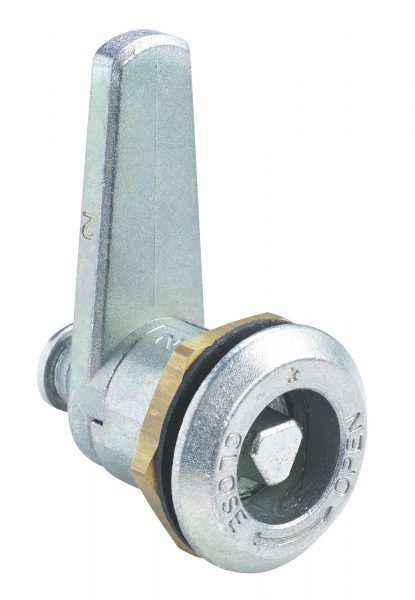

21mm Compression Lock D144
A 21mm vibration and water resistant lock (IP65 rated) with a compression function. The threaded barrel ensures a good level of compression with a wide grip up to 8.5mm. Operable by use of a special tool this lock also has a tightening function to form a close seal between surfaces. This makes it ideal for use on high voltage or transport applications.
Lock Options
| Product Code | Key Series | Housing Mounting | Body Length | Head Width | Head Depth | Finish | Head Shape | IP65 | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| D144 | Nut | 21 | 30.8 | 4 | Galvanised | Round | Yes | 6 | Contact Sales |
Standard Features
- IP65 rated
- Standard finish: Galvanised
- Mounting hole shape: Double D
- Housing fixing: Nut
- Standards: PN-EN 60529:2003 – IP65
- Available key shapes: 8mm triangle, 8mm square, “D” shape
Additional Information
21mm Compression Lock D144 technical drawing
