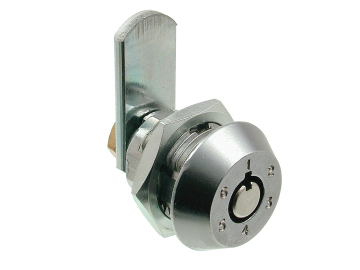

21.6mm – 30mm Radial Pin Tumbler Code Change Lock 4810

A series of 21.6mm – 30mm radial pin tumbler code change locks available in bright chrome. For each change key combination there are six operating keys and one change key. Also the form and length of this cam can be varied to suit customer requirements. This means the lock is ideal for applications such as Asset Management where high security is required.

View Lock Details
Featured Technicals
Lock Options
Product Code Key Series Housing Mounting Combinations Body Length Head Width Head Depth Finish Head Shape Max Panel Thickness Movement X Dimension Y Dimension Inquire

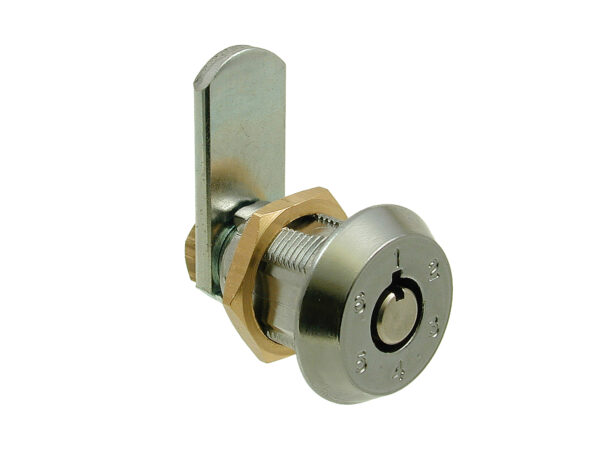

4337-0100 Nut mounting 1000 22.2 27.3 5.6 Bright Chrome Conical 12 1, 14, 2, 8, 9 22.2 30.6 Contact Sales
4338-0100 Nut mounting 1000 30 27.3 5.6 Bright Chrome Conical 21 1, 14, 2, 8, 9 30 38.5 Contact Sales
4810-0100 Nut mounting 1000 21.6 27.3 7.2 Bright Chrome Conical 11 1, 14, 2, 8, 9 21 30.6 Contact Sales

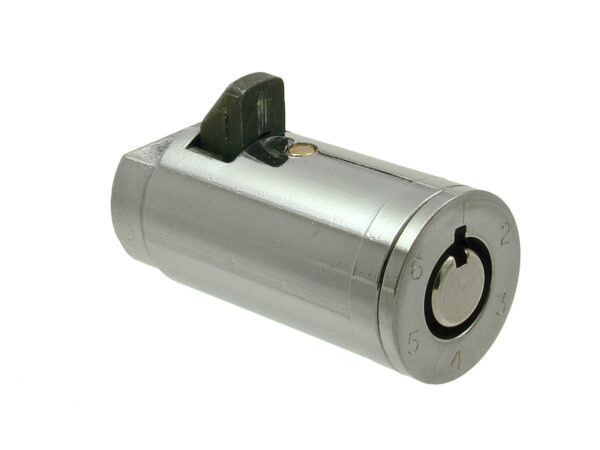

4812-0100 Nut mounting 1000 25.5 19 25.5 Bright Chrome Cylindrical 8 Contact Sales
Standard Features
  • Standard movements: 1, 2, 8, 9, 14 (4810, 4337, 4338); 8 (4812) (see RPT Lock Movements)
  • Lock Combinations: 1,000 change-key combinations
  • Standard finish: Bright chrome
  • Mounting hole shape: see technical drawing
  • Dimension ‘P’ specification: Max Panel Thickness (see Lock Options above)

The form and length of cam can be varied to suit your requirements. Standard ‘X’ dimensions can be found in the Options table, alternatively

  • For a formed cam: specify dimensions B & X
  • For a flat cam: specify dimension B only



Additional Information

21.6mm - 30mm Radial Pin Tumbler Code Change Lock 4810 technical drawing

For each change key combination there are six operating keys and one change key.

Each key is marked with a six figure number, the first five numbers are identical for the change key and operating keys. The last figure is marked ‘0’ on the change key and ‘1’ to ‘6’ on each operating keys relative to its function in the lock.

Example:

 Change Key Combination Number  560010
 Operating Key Numbers  560011, 560012, 560013, 560014, 560015, 560016
