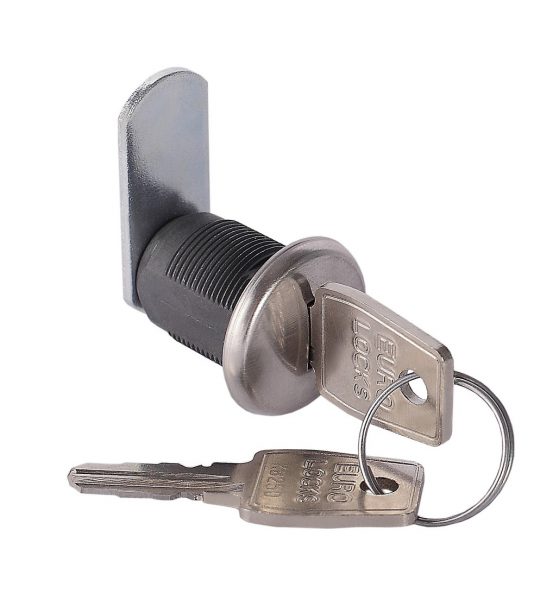

21.5mm Cam Lock C912
A 21.5mm cam lock C912. As a standard, the lock is equipped with a shutter that limits the ingress of fluids and solid dirt. This makes it an ideal cam lock for applications such as Mail Boxes and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Head Shape | Max Panel Thickness | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| C912 | 500 | 21.5 | 26 | 5.5 | Domed | 13 | 3 | Contact Sales |
Standard Features
- Standard movements: 3
- Lock Combinations: 500
- Standard finish: Stainless steel cap
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘X’ and ‘B’ specifications: See Cams
Additional Information
21.5mm Cam Lock C912 technical drawing
