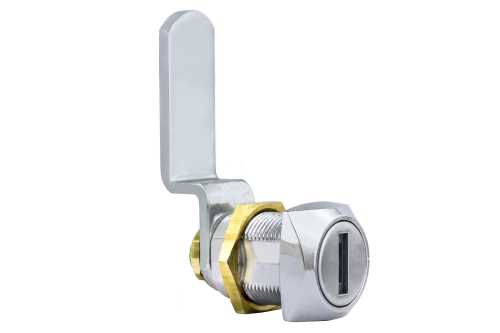

20mm UGL Cam Lock 0902
The Upper Grade range of cam locks are premium quality, 10-disc cam locks made for maximum strength and durability. The cam lock features 10-disc tumblers all made from a high strength zinc alloy that are arranged on opposing sides of the cylinder to avoid picking and is operated by use of an exclusive, double entry UGL key system.
Lock Description
This secure system consists of an extended key range of up to 10,000 differs for enhanced security whilst the keys are made from steel.
Rigorously tested for durability and reliability, these cam locks are ideal for use in high security applications such as slot machines, vending machines, package and mailboxes, cabinets and cupboards or anywhere valuable assets need to be protected.
Have a question?
Lock Options
| Product Code | Key Series | Mounting Hole Type | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Head Shape | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0900 | C | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | |
| 0901 | B | Nut mounting | 10000 | 20 | 24 | 7.5 | Square | 12 | Standard | Contact Sales | |
| 0902 | A | Nut mounting | 10000 | 20 | 24 | 6.9 | Square | 12 | Standard | Contact Sales | |
| 0903 | B | 10000 | 20 | 24 | 7.5 | Square | 12 | Standard | Contact Sales | ||
| 0904 | A | 10000 | 20 | 24 | 7.5 | Square | 12 | Standard | Contact Sales | ||
| 0905 | B | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | |
| 0906 | A | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | |
| 0907 | B | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | ||
| 0908 | A | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | ||
| 0912 | C | Nut mounting | 10000 | 20 | 24 | 7.5 | Square | 12 | Standard | Contact Sales | |
| 0914 | C | 10000 | 20 | 24 | 7.5 | Square | 12 | Standard | Contact Sales | ||
| 0916 | C | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | |
| 0918 | C | 10000 | 20 | 23 | 7 | Conical | 12 | Standard | Contact Sales | ||
| 0951 | B | Nut mounting | 10000 | 20 | 24 | 7.5 | Square | 12 | Shuttered | Contact Sales | |
| 0952 | A | Nut mounting | 10000 | 20 | 24 | 7.5 | Square | 12 | Shuttered | Contact Sales | |
| 0953 | B | 10000 | 20 | 24 | 7.5 | Square | 12 | Shuttered | Contact Sales | ||
| 0954 | A | 10000 | 20 | 24 | 7.5 | Square | 12 | Shuttered | Contact Sales | ||
| 0955 | B | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Shuttered | Contact Sales | |
| 0956 | A | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Shuttered | Contact Sales | |
| 0957 | B | 10000 | 20 | 23 | 7 | Conical | 12 | Shuttered | Contact Sales | ||
| 0958 | A | 10000 | 20 | 23 | 7 | Conical | 12 | Shuttered | Contact Sales | ||
| 0962 | C | Nut mounting | 10000 | 20 | 24 | 7.5 | Square | 12 | Shuttered | Contact Sales | |
| 0964 | C | 10000 | 20 | 24 | 7.5 | Square | 12 | Shuttered | Contact Sales | ||
| 0966 | C | Nut mounting | 10000 | 20 | 23 | 7 | Conical | 12 | Shuttered | Contact Sales | |
| 0968 | C | 10000 | 20 | 23 | 7 | Conical | 12 | Shuttered | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4 (8 & 9 only with nut fixing or horseshoe clip across the round sides of the housing)
- Lock Combinations: 10,000
- Standard finish: Bright chrome
- Comprehensive range of Cams available: See Cams
Additional Information
20mm UGL Cam Lock 0902 technical drawing
