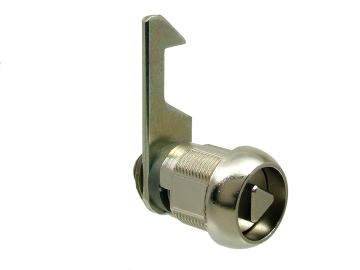

20mm Tool Operated Cam Lock B576
A 20mm tool operated cam lock B576 and B900 available in bright nickel with different key shape sizes. These locks are operable by use of a special tool making them ideal for applications such as Lockers, Package and Mail Boxes or anywhere additional security is required. The lock also has a spring action return on the cam.
Lock Options
| Product Code | Key Series | Housing Mounting | Body Length | Head Width | Head Depth | Finish | Head Shape | Key Number | Max Panel Thickness | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B576 | Nut mounting | 20 | 22.5 | 6.9 | Bright Nickel | Round | F8412-T8M | 6 | 2 | Contact Sales | |
| B900 | Nut mounting | 20 | 22.5 | 6.9 | Bright Nickel | Round | F8412-T9M | 6 | 2 | Contact Sales |
Standard Features
- Standard movements: 2
- Standard finish: Bright nickel
- Panel thickness: 6mm
- Mounting hole shape: Double D
- Dimension ‘B’ Specification: See Cams
Additional Information
20mm Tool Operated Cam Lock B576 technical drawing
