20mm Push-to-Turn Latch Lock 5720

A 20mm push-to-turn latch lock available in barrel nickel as standard. New features of this latch lock include a distinct and audible ‘click’ when the handle reaches the locked position and a smooth rotational feel.

View Lock Details
20mm Push-to-Turn Latch Lock 5720
20mm Push-to-Turn Latch Lock 5720
20mm Push-to-Turn Latch Lock 5720
20mm Push-to-Turn Latch Lock 5720

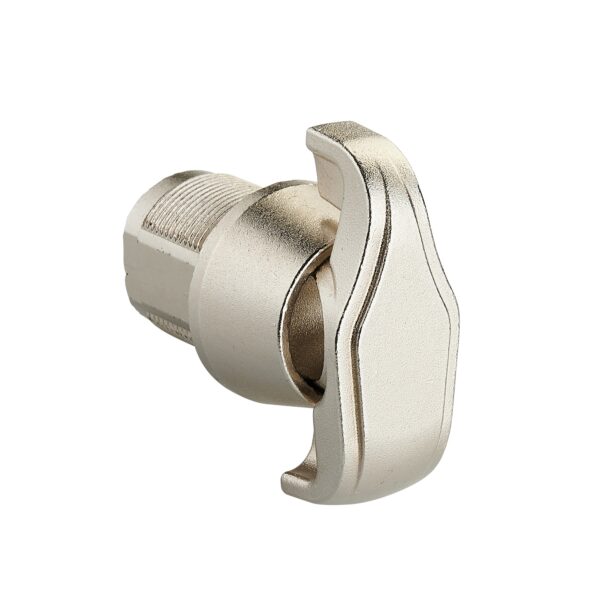

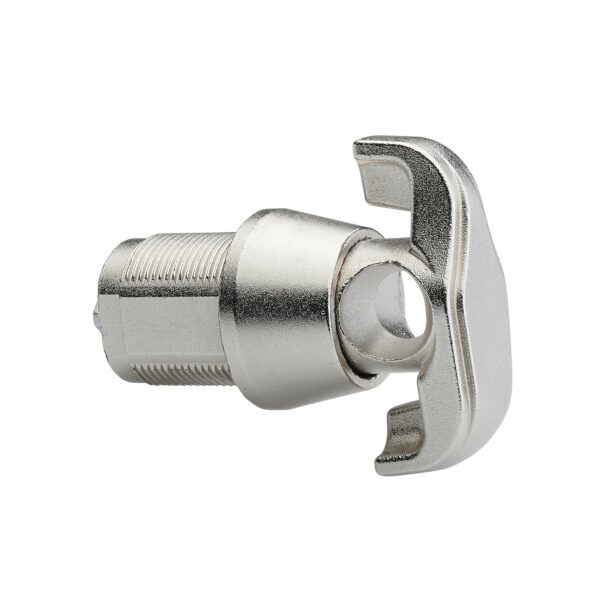

20mm Push-to-Turn Latch Lock 5720 in Satin Nickel
20mm Push-to-Turn Latch Lock 5720 in Satin Nickel

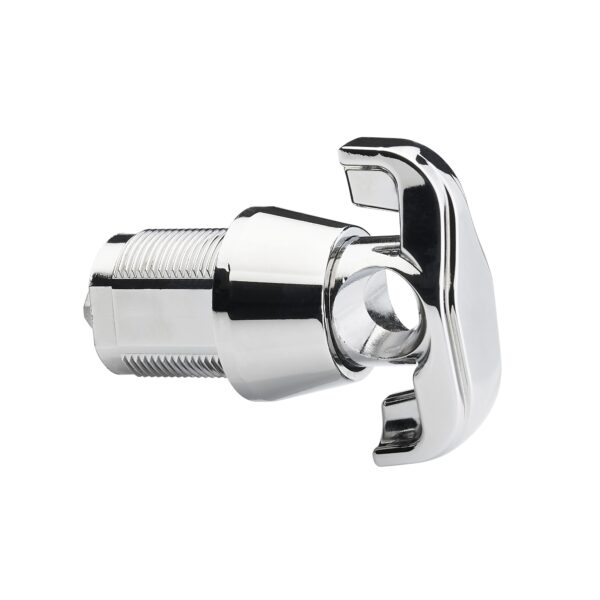

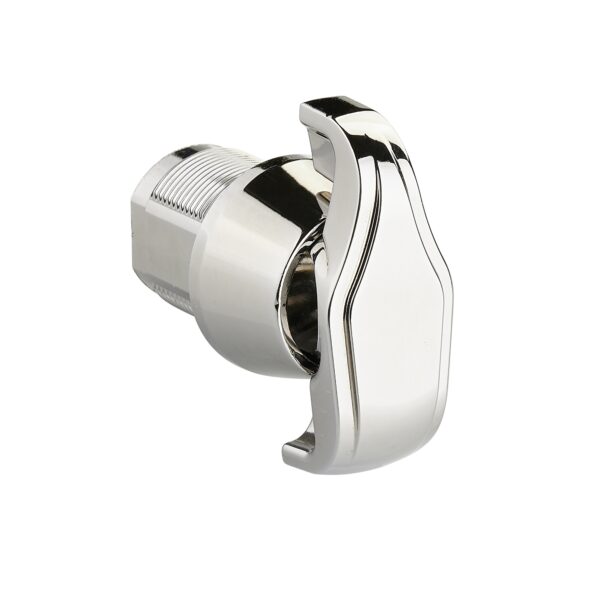

20mm Push-to-Turn Latch Lock 5720 in Bright Chrome
20mm Push-to-Turn Latch Lock 5720 in Bright Chrome
20mm Push-to-Turn Latch Lock 5720 in Satin Nickel
20mm Push-to-Turn Latch Lock 5720 in Satin Nickel
20mm Push-to-Turn Latch Lock 5720 in Bright Chrome
20mm Push-to-Turn Latch Lock 5720 in Bright Chrome
  • 20mm Push-to-Turn Latch Lock 5720
  • 20mm Push-to-Turn Latch Lock 5720
  • 20mm Push-to-Turn Latch Lock 5720 in Satin Nickel
  • 20mm Push-to-Turn Latch Lock 5720 in Bright Chrome
  • 20mm Push-to-Turn Latch Lock 5720 in Satin Nickel
  • 20mm Push-to-Turn Latch Lock 5720 in Bright Chrome
Featured Technicals
Brochure
Drawing
Lock Description

When secured with a padlock, the latch lock handle is disengaged and spins freely to help prevent the lock being forced.

Available in either a left or right-hand variant, this robust, easy to use lock is ideal for many applications including lockers and office furniture.

Have a question?
Contact Us
Lock Options
Product Code Body Length Finish Max Panel Thickness Shackle Diameter Inquire
5720 20 Barrel Nickel 13 Min 5 – Max 8 Contact Sales
Standard Features
  • Standard movements: 01 (90°CW), 02 (90°ACW)
  • Standard finish: Barrel Nickel, Bright Chrome (available on request) and Satin Chrome (available on request)
  • Recommended Shackle Diameter: Min 5mm; Max 8mm
  • Nut Fix Housing: ≤13mm panel thickness
  • For cam information: See AnchorCams
  • Smooth transition for handle engagement
  • Positive ‘click’ between open and closed position
  • Free-wheel system with padlock fitted
  • Zinc diecast construction
  • Handle customisation (available on request)

Additional Information

20mm Push-to-Turn Latch Lock 5720 technical drawing
