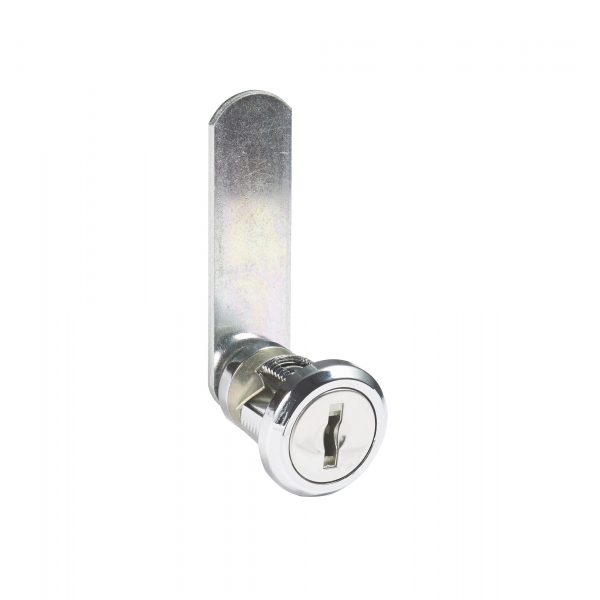

20mm Cam Lock F727
A 20mm cam lock F727 available chrome plated. This cam lock is ideal for applications such as Asset Security and Lockers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Height | Head Width | Head Depth | Cam Type | Finish | Head Shape | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F727 | 500 | 20 | 24 | 4.5 | M | Chrome | Round | 3 | Contact Sales | ||
| F761 | 500 | 20 | 24 | 24 | 4.5 | 6 | Chrome | Round | 3 | Contact Sales |
Standard Features
- Standard movements: 3
- Lock Combinations: 500
- Standard finish: Chrome plated
- Mounting hole shape: Round with notches
- Housing fixing: Clip or Nut
- Panel thickness: 06. – 2.7mm with Clip; 3.0 – 10.0mm with Nut
- M Keyed system supplied to order only
- Dimension ‘B’ & ‘X’ Specification: See Cams
Additional Information
20mm Cam Lock F727 technical drawing
