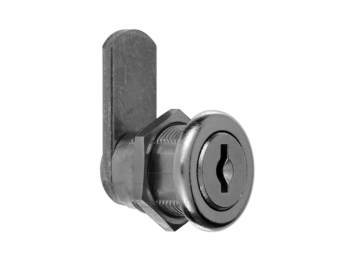

20mm Cam Lock 3803
A series of 20mm cam locks available in chrome or nickel plated. The barrel on these cam locks can be assembled with a round gasket on request making it ideal for many applications including Asset Security and Lockers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Cap | Finish | Head Shape | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 3801 | 2000 | 20 | 25 | 3 | Screw + Washer | Capped | Chrome | Round | Contact Sales | |
| 3802 | 2000 | 20 | 25 | 3 | Screw + Washer | Cap + Dust Cover | Chrome | Round | Contact Sales | |
| 3803 | 2000 | 20 | 25 | 3 | Screw + Washer | Uncapped | Nickel Plated | Round | Contact Sales |
Standard Features
- Standard movements: 1, 3, 4
- Lock Combinations: 2000
- Standard finish: Chrome or nickel plated
- Mounting hole shape: Double D
- Max panel thickness: with Horseshoe clip fixing – 0.8mm – 1.2mm; with Nut fixing – 13mm
- M Keyed system supplied to order only
- Dimension ‘B’ & ‘X’ Specification: See Cams
Additional Information
20mm Cam Lock 3803 technical drawing
