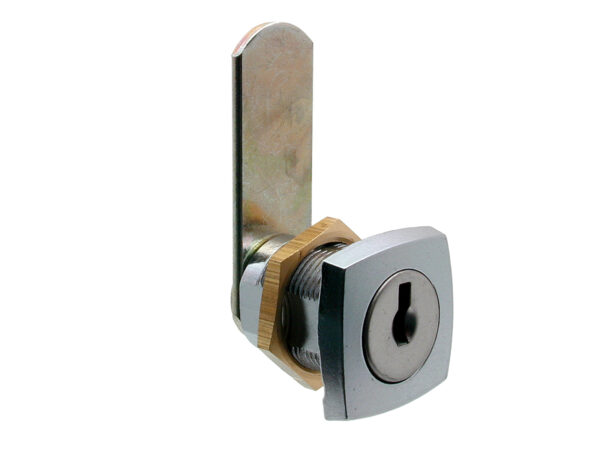

20mm Cam Lock 1345
A series of 20mm cam locks in bright chrome with a double D mounting hole shape. These are ideal cam locks for numerous applications including Heavy Duty Vehicles and Lockers.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1345 | Nut mounting | 200 | 20 | 25.4 | 4.4 | Bright Chrome | Square | 12 | Contact Sales | |
| 1377 | 200 | 20 | 25.4 | 4.4 | Bright Chrome | Square | 12 | Contact Sales | ||
| 1445 | 2000 | 20 | 25.4 | 4.4 | Bright Chrome | Square | 12 | Contact Sales | ||
| 3845 | Nut mounting | 2000 | 20 | 25.4 | 4.4 | Bright Chrome | Square | 12 | Contact Sales | |
| 4745 | 500 | 20 | 25.4 | 4.4 | Bright Chrome | Square | 12 | Contact Sales | ||
| 4777 | 500 | 20 | 25.4 | 4.4 | Bright Chrome | Square | 12 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 8, 9
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
20mm Cam Lock 1345 technical drawing
