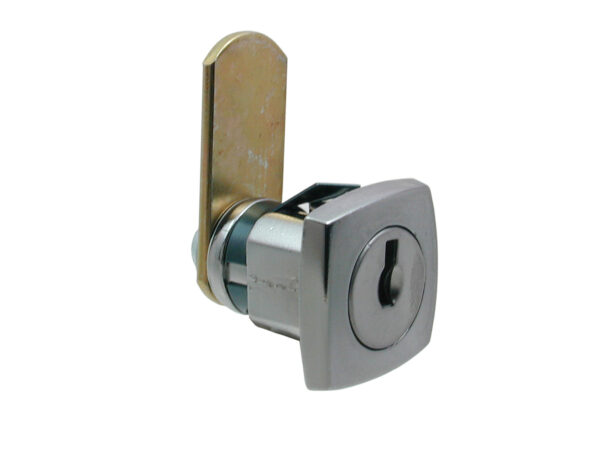

20mm Cam Lock 1339

A wide range of 20mm cam locks available in bright chrome with a double D mounting hole shape. These are ideal cam locks for various applications including Wooden Office Furniture and Asset Security.

View Lock Details
20mm Cam Lock 1339
20mm Cam Lock 1339
Featured Technicals
Drawing
Lock Options
Product Code Key Series Housing Mounting Combinations Body Length Head Width Head Depth Cam Fixing Finish Head Shape Inquire
1338 Snap In Fix 200 20 23 4.5 Screw Bright Chrome Conical Contact Sales
1339 Snap In Fix 200 20 25.4 5 Screw Bright Chrome Square Contact Sales
1343 200 20 23 4.5 Screw Bright Chrome Conical Contact Sales
1344 200 20 25.4 5 Screw Bright Chrome Square Contact Sales
1438 Snap In Fix 2000 20 23 4.5 Screw Bright Chrome Conical Contact Sales
1439 Snap In Fix 2000 20 25.4 5 Screw Bright Chrome Square Contact Sales
1443 2000 20 23 4.5 Screw Bright Chrome Conical Contact Sales
1444 2000 20 25.4 5 Screw Bright Chrome Square Contact Sales
3838 Snap In Fix 2000 20 23 4.5 Screw Bright Chrome Conical Contact Sales
3839 Snap In Fix 2000 20 25.4 5 Screw Bright Chrome Square Contact Sales
3843 2000 20 23 4.5 Screw Bright Chrome Conical Contact Sales
4601 Snap In Fix 200 20 23 4.5 Circlip Bright Chrome Conical Contact Sales
4738 Snap In Fix 500 20 23 4.5 Screw Bright Chrome Conical Contact Sales
4739 Snap In Fix 500 20 25.4 5 Screw Bright Chrome Square Contact Sales
4743 500 20 23 4.5 Screw Bright Chrome Conical Contact Sales
4744 500 20 25.4 5 Screw Bright Chrome Square Contact Sales
Standard Features
  • Standard movements: 1, 2, 3, 4, 8, 9
  • Lock Combinations: 200-2000
  • Standard finish: Bright chrome
  • Mounting hole shape: Double D
  • M Keyed system supplied to order only
  • Dimension ‘B’ & ‘X’ Specification: See Cams

Additional Information

20mm Cam Lock 1339 technical drawing
