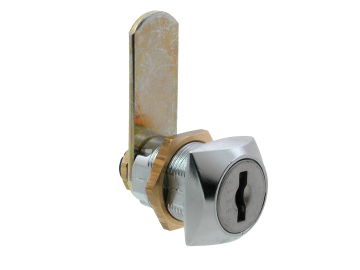

20mm Cam Lock 0801
A range of 20mm Cam Locks available in Bright Chrome with a Double D mounting hole shape. The shuttered barrel on many of these Cam Locks can be passivated and greased for greater protection when used outdoors. This makes them ideal for applications such as Automotive Accessories, Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0801 | Nut mounting | 2000 | 20 | 24 | 7 | Bright Chrome | Square | 12 | Standard | Contact Sales | |
| 0803 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | 12 | Standard | Contact Sales | ||
| 0805 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | 12 | Standard | Contact Sales | ||
| 0807 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | 12 | Standard | Contact Sales | ||
| 0851 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | 12 | Shuttered | Contact Sales | ||
| 0853 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | 12 | Shuttered | Contact Sales | ||
| 0855 | Nut mounting | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | 12 | Shuttered | Contact Sales | |
| 0857 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | 12 | Shuttered | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4
- Lock Combinations: 2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
20mm Cam Lock 0801 technical drawing
