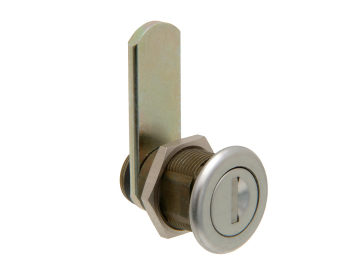

20.3mm Cam Lock F344
A 20.3mm and 20mm Cam Lock available in Olive Drab Housing with a Stainless Steel Cap. The barrel is assembled with an ‘O’ ring and is greased making it an ideal cam lock for numerous applications including Mail Boxes and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F126 | 500 | 20 | 25 | 3 | Screw + Washer | Capped | Olive Drab | Round | 1.3 – 10 | Contact Sales | |
| F344 | 2000 | 20.3 | 25 | 3.3 | Screw + Washer | Capped | Olive Drab | Round | Contact Sales |
Standard Features
- Standard movements: 1, 3
- Lock Combinations: 2000
- Standard finish: Olive drab housing with stainless steel cap
- Mounting hole shape: Double D with notches
- Max panel thickness: with Horseshoe clip fixing – 1.22mm – 1.63mm; with Nut fixing – 7mm
- M Keyed system supplied to order only
- Hole fixing: Horseshoe clip or nut fixing
- Dimension ‘B’ Specification: See Cams
Additional Information
20.3mm Cam Lock F344 technical drawing
