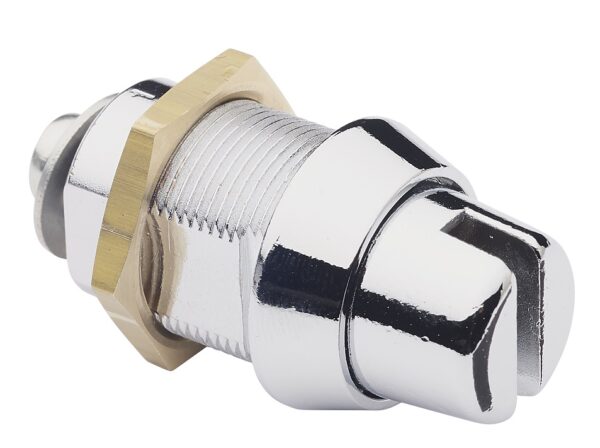

20mm – 22.4mm Camlock F355
A 20mm and 22.4mm series of Cam Locks in Bright Chrome with a Double D mounting hole shape. These cam locks have an ‘anti-kicking’ system, making them ideal for secure applications such as Enclosures and Asset Security.
Lock Options
| Product Code | Key Series | Mounting Hole Size | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Max Panel Thickness | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F355 | 19.2 x 16 | 2000 | 20 | 22 | 6.9 | Nut | Bright Chrome | Conical | 12 | 3 | Contact Sales | |
| F497 | 19 x 16.6 | 2000 | 22.4 | 22 | 10.8 | Nut | Bright Chrome | Conical | 12 | 3 | Contact Sales |
Standard Features
- Standard movements: 3
- Lock Combinations: 2000
- Standard finish: Bright chrome, brass nickel key
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- ‘X’ dimension: Body Length
- Comprehensive range of cams available: See Cams
Additional Information
20mm - 22.4mm Camlock F355 technical drawing
