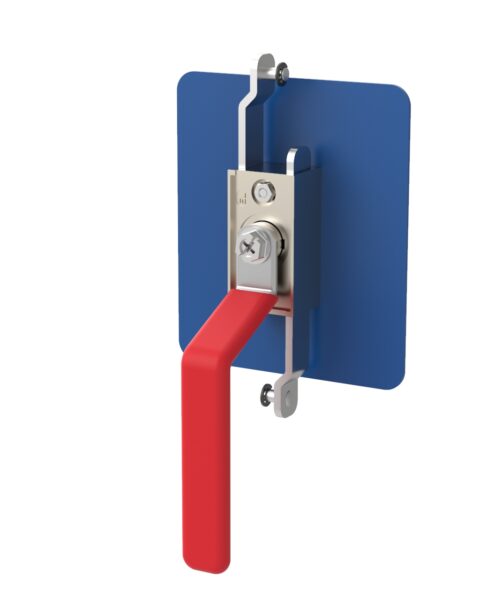

2-Point Locking System W250

A 2-point locking system with handle designed for use on passive doors in enclosure applications. In the W250, the handle is combined with a rod control mechanism which activates the upper and lower rods, locking the door.

View Lock Details
Featured Technicals
Lock Description

In standard enclosure applications only the active leaf is opened, but with the W250 the second (passive) leaf can be quickly and easily opened by releasing the rods that lock the passive leaf to the upper beam of the door frame and the threshold.

The locking system is made of ZAMAK, and the rods and handle are made of galvanized steel, making the whole product durable and corrosion resistant. The PVC polymer coating reduces the risk of cuts and ensures proper grip of the handle while closing and opening. Whilst the shape and size is adapted to ensure ergonomic use.

The locking system has been adapted to operate with standard accessories from our Enclosures offer and can be used on power cabinets, control cabinets, medium and high voltage stations.





Have a question?
Lock Options
Product Code Material Inquire
W250 Zamak and Zinc plated Steel with PVC coating Contact Sales
Standard Features
  • Minimalist lock design – shape and size adapted to ensure ergonomic use
  • Material: Locking system made of ZAMAK, rods and handle made of galvanized steel
  • PVC polymer coating reduces the risk of cuts and ensures proper grip of the handle while closing and opening
  • Can be installed in left and right hand doors
  • Handle rotation: 135⁰, rod stroke by 24 cm
  • Product is delivered assembled

Additional Information

2-Point Locking System W250 technical drawing
