19mm or 25mm Rim Lock 5870

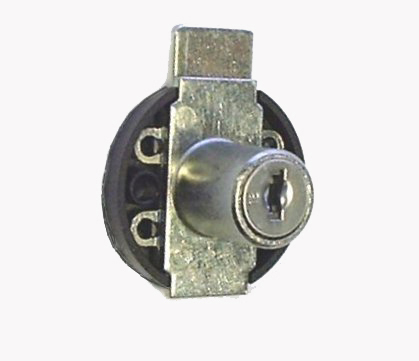

A range of 19mm or 25mm rim locks in bright zinc or black zinc. This lock is ideal for use on items such as workstation cupboards and office cabinets.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | A Dimension | Back Plate | Head Shape | Movement | X Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4170-3 | 200 | 25 | 16.3 | 25 | 7 | Yes | Cylindrical | 3 | 25 | Contact Sales | |
| 4170-7 | 200 | 25 | 16.3 | 25 | 14 | Yes | Cylindrical | 7 | 25 | Contact Sales | |
| 4171-3 | 200 | 19 | 16.3 | 19 | 7 | Yes | Cylindrical | 3 | 19 | Contact Sales | |
| 4171-7 | 200 | 19 | 16.3 | 19 | 14 | Yes | Cylindrical | 7 | 19 | Contact Sales | |
| 4172-3 | 200 | 19 | 16.3 | 19 | 7 | Yes | Cylindrical | 3 | 19 | Contact Sales | |
| 4172-7 | 200 | 19 | 16.3 | 19 | 14 | Yes | Cylindrical | 7 | 19 | Contact Sales | |
| 4173-4 | 200 | 19 | 16.3 | 19 | 7 | Yes | Cylindrical | 4 | 19 | Contact Sales | |
| 4173-7 | 200 | 19 | 16.3 | 19 | 14 | Yes | Cylindrical | 7 | 19 | Contact Sales | |
| 4174-3 | 200 | 25 | 16.3 | 25 | 7 | Yes | Cylindrical | 3 | 25 | Contact Sales | |
| 4174-7 | 200 | 25 | 16.3 | 25 | 14 | Yes | Cylindrical | 7 | 25 | Contact Sales | |
| 4175-4 | 200 | 25 | 16.3 | 25 | 7 | Yes | Cylindrical | 4 | 25 | Contact Sales | |
| 4175-7 | 200 | 25 | 16.3 | 25 | 14 | Yes | Cylindrical | 7 | 25 | Contact Sales | |
| 5870-3 | 200 | 25 | 16.3 | 25 | 7 | No | Cylindrical | 1 | 25 | Contact Sales | |
| 5870-7 | 200 | 25 | 16.3 | 25 | 14 | No | Cylindrical | 7 | 25 | Contact Sales | |
| 5871-3 | 200 | 19 | 16.3 | 19 | 7 | No | Cylindrical | 3 | 19 | Contact Sales | |
| 5871-7 | 200 | 19 | 16.3 | 19 | 14 | No | Cylindrical | 7 | 19 | Contact Sales | |
| 5872-3 | 200 | 19 | 16.3 | 19 | 7 | No | Cylindrical | 3 | 19 | Contact Sales | |
| 5872-7 | 200 | 19 | 16.3 | 19 | 14 | No | Cylindrical | 7 | 19 | Contact Sales | |
| 5873-4 | 200 | 19 | 16.3 | 19 | 7 | No | Cylindrical | 4 | 19 | Contact Sales | |
| 5873-7 | 200 | 19 | 16.3 | 19 | 14 | No | Cylindrical | 7 | 19 | Contact Sales | |
| 5874-3 | 200 | 25 | 16.3 | 25 | 7 | No | Cylindrical | 3 | 25 | Contact Sales | |
| 5874-7 | 200 | 25 | 16.3 | 25 | 14 | No | Cylindrical | 7 | 25 | Contact Sales | |
| 5875-4 | 200 | 25 | 16.3 | 25 | 7 | No | Cylindrical | 4 | 25 | Contact Sales | |
| 5875-7 | 200 | 25 | 16.3 | 25 | 14 | No | Cylindrical | 7 | 25 | Contact Sales |
Standard Features
- Standard movements: 7mm bolt length – 3 (vertical & RH), 4 (LH only); 14mm bolt length – 7 (vertical, RH & LH)
- Lock Combinations: 200 (1,000 on request)
- Standard finish: Bright zinc, black zinc
- Mounting hole shape: Round
- M Keyed system supplied to order only
- Black plastic back plate available with certain locks: see Lock Options
Additional Information
19mm or 25mm Rim Lock 5870 technical drawing
