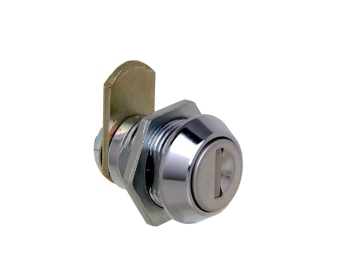

19.7mm Cam Lock F341
A range of 19.7mm cam locks available in bright chrome, with or without dust cover. The barrel can also be assembled with a round gasket on request making it ideal for many applications including Mail Boxes and Office Furniture.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F341 | 500 | 19.7 | 24.75 | 3.35 | Nut | Dust Cover | Bright Chrome | Conical | 12 | Contact Sales | |
| F379 | 2000 | 19.7 | 24.75 | 3.35 | Nut | Uncapped | Bright Chrome | Conical | 12 | Contact Sales | |
| F380 | 2000 | 19.7 | 24.75 | 3.35 | Nut | Dust Cover | Bright Chrome | Conical | 12 | Contact Sales | |
| F419 | 500 | 19.7 | 24.75 | 3.35 | Screw + Washer | Dust Cover | Bright Chrome | Conical | 12 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 8
- Lock Combinations: 500-2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Comprehensive range of Cams available: See Cams
Additional Information
19.7mm Cam Lock F341 technical drawing
