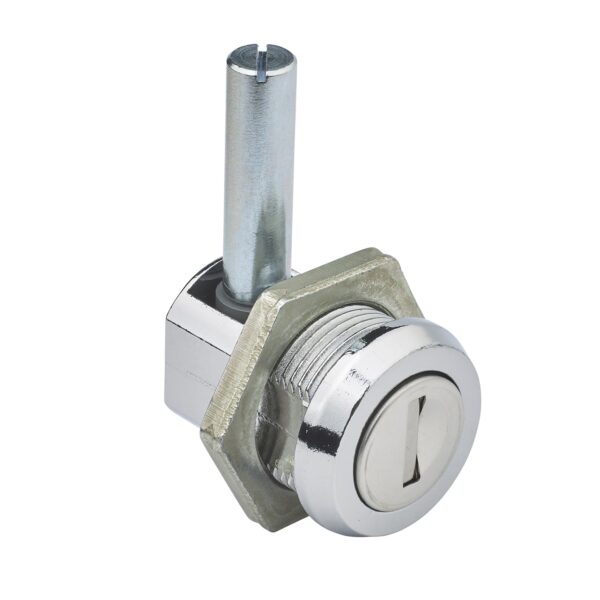

19.5mm Pillar Lock B890
A 19.5mm pillar lock in chrome, ideal for use on commercial refrigerators, double doors and sliding door systems.
Lock Options
| Product Code | Key Series | Pillar Movement | Combinations | Body Length | Head Width | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| B890 | 36 | 25 | 19.5 | 25.9 | Chrome | Conical | 10 | Contact Sales | |
| B891 | 24 | 25 | 19.5 | 25.9 | Chrome | Conical | 10 | Contact Sales |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 25
- Standard finish: Chrome
- Panel thickness: 10mm
- Mounting hole shape: Double D
- Pillar movement: 6.8mm from following distance from centre – B890 36mm, B891 24mm
Additional Information
19.5mm Pillar Lock B890 technical drawing
