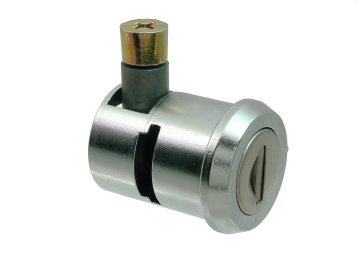

19.5mm Pillar Lock B472
A 19.5mm pillar lock in chrome, ideal for use on commercial refrigerators, double doors and sliding door systems.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Finish | Head Shape | Max Panel Thickness | X Dimension | Y Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| B472 | 25 | 19.5 | 25.9 | Chrome | Conical | 10 | 16.4 | 23.2 | Contact Sales | |
| C307 | 25 | 19.5 | 25.9 | Chrome | Conical | 10 | 16.7 | 23.5 | Contact Sales | |
| C308 | 25 | 19.5 | 25.9 | Chrome | Conical | 10 | 10.8 | 17.6 | Contact Sales | |
| C390 | 25 | 19.5 | 25.9 | Chrome | Conical | 10 | 33.6 | 40.4 | Contact Sales |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 25
- Key series: Special
- Standard finish: Chrome
- Panel thickness: 10mm
- Mounting hole shape: Round
- ‘X’ Dimension = Pillar movement: 6.8mm from distance from centre (see lock options above)
Additional Information
19.5mm Pillar Lock B472 technical drawing
