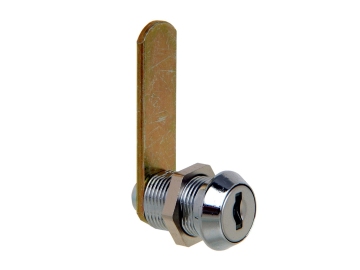

17.5mm Cam Lock F402
A range of 17.5mm cam locks available in chrome, ideal for many applications including Healthcare furniture and Automotive Accessories.
Lock Options
| Product Code | Key Series | Mounting Hole Size | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F402 | 14.2 | Nut mounting | 200 | 17.5 | 18 | 4.5 | Chrome | Conical | 12 | Contact Sales | |
| F404 | 16.1 x 13.1 | Nut mounting | 200 | 17.5 | 20 | 4.5 | Chrome | Conical | 2 – 10 | Contact Sales | |
| F405 | 14.2 | Nut mounting | 200 | 17.5 | 18 | 4.5 | Chrome | Conical | 12 | Contact Sales | |
| F406 | 16.1 x 13.1 | Nut mounting | 200 | 17.5 | 20 | 4.5 | Chrome | Conical | 2 – 10 | Contact Sales | |
| F636 | 16.2 | Nut mounting | 200 | 17.5 | 20 | 4.5 | Bright Chrome | Conical | 13.5 | Contact Sales |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 200
- Standard finish: Chrome
- Mounting hole shape: F404 & F406 Double D; F402 & F405 Round
- M Keyed system supplied to order only
- Comprehensive range of cams available: See Cams
Additional Information
17.5mm Cam Lock F402 technical drawing
