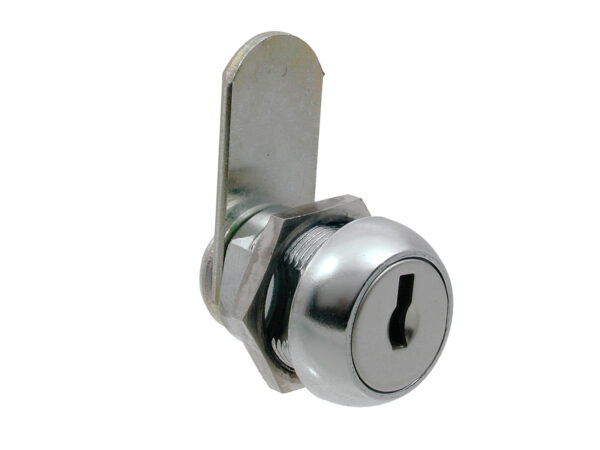

16mm Cam Lock 1332
A range of 16mm cam locks available in bright chrome with a double D mounting hole shape. The barrels on some of these cam locks can be passivated and greased for greater protection when used outdoors. This makes it ideal for applications such as Automotive Accessories, Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1332 | Nut mounting | 200 | 16 | 22.5 | 7 | Bright Chrome | Round | Standard | Contact Sales | |
| 1333 | 200 | 16 | 22.5 | 7 | Bright Chrome | Round | Standard | Contact Sales | ||
| 1348 | Nut mounting | 200 | 16 | 22.5 | 7 | Bright Chrome | Round | Shuttered | Contact Sales | |
| 1358 | 200 | 16 | 22.5 | 7 | Bright Chrome | Round | Shuttered | Contact Sales | ||
| 1432 | 2000 | 16 | 22.5 | 7 | Bright Chrome | Round | Standard | Contact Sales | ||
| 1433 | 2000 | 16 | 22.5 | 7 | Bright Chrome | Round | Standard | Contact Sales | ||
| 4648 | 200 | 16 | 22 | 7 | Bright Chrome | Round | Shuttered | Contact Sales | ||
| 4658 | 200 | 16 | 22 | 7 | Bright Chrome | Round | Shuttered | Contact Sales | ||
| B197 | 200 | 16 | 23 | 7 | Bright Chrome | Cylindrical | Standard | Contact Sales | ||
| B223 | 200 | 16 | 23 | 7 | Bright Chrome | Cylindrical | Standard | Contact Sales | ||
| B332 | 200 | 16 | 24.75 | 4.3 | Bright Chrome | Conical | Standard | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 5, 6, 7 (5, 6 & 7 not available with cylindrical head)
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘X’ Specification: See Cams
Additional Information
16mm Cam Lock 1332 technical drawing
