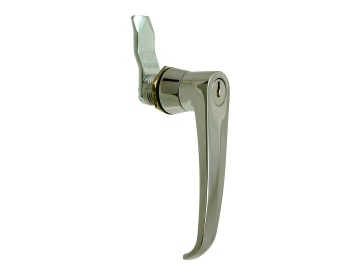

16.1mm IP65 L-Handle 0023
A 16.1mm L-handle 0023 available in bright chrome and epoxy. Each lock is supplied complete with a 0.3mm thick nitrile head gasket and is IP65 rated making it ideal for outdoor applications such as garage doors and mail boxes.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Handle Depth | Handle Length | IP65 | Lock Type | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| 0023 | 200 | 16.1 | 24 | 35 | 100 | Yes | Locking | Contact Sales | |
| 0024 | 16.1 | 24 | 35 | 100 | Yes | Non-Locking | Contact Sales |
Standard Features
- Standard movements: 1, 2
- Lock Combinations: 200
- Standard finish: Bright chrome, epoxy
- Mounting hole shape: Squared
- M Keyed system supplied to order only
- IP65 rated
- Dimension ‘X’ & ‘B’ specification: See Cams and Accessories for IP Rated Locks
Additional Information
16.1mm IP65 L-Handle 0023 technical drawing
