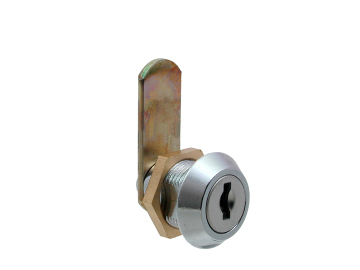

15mm Cam Lock 0233
A series of 15mm cam locks suitable for use in sanitation and hygiene products such as touch free soap dispensers, hands free soap dispensers and toilet tissue dispensers. These durable locks can be installed flush with the surface of the container making them secure and ideal for use in offices, schools and restaurants.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 3100 | Nut mounting | 500 | 15 | 22 | 4.7 | Nickel | Conical | 9.5 | Contact Sales | |
| 3133 | Nut mounting | 500 | 15 | 22 | 4.7 | Nickel | Conical | 9.5 | Contact Sales | |
| 0233 | Nut mounting | 100 | 15 | 22 | 5 | Nickel | Conical | 9.5 | Contact Sales | |
| 0238 | 100 | 15 | 22 | 5 | Nickel | Conical | 11 & 9.5 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4 (0233 & 0238); 1, 2, 3, 4, 8 (3100 & 3133)
- Lock Combinations:100-500
- Standard finish: Nickel
- Mounting hole shape: Double D
- Dimension ‘B’ Specification: See Cams
Additional Information
15mm Cam Lock 0233 technical drawing
