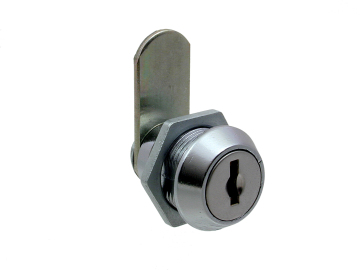

15.5mm – 22.2mm Cam Lock 0706
A series of cam locks with a body length of 15.5mm, 18mm, 22mm and 22.2mm. Some of these cam locks can also be shuttered making them ideal for applications such as Automotive Accessories and Asset Security.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Cam | Cam Fixing | Finish | Head Shape | Hours | Max Panel Thickness | Movement | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0706 | 18 | 24 | Contact Sales | ||||||||||||
| F334 | 500 | 18 | 24 | 6 | Crank away, Crank towards, Flat | Screw | Nickel | Conical | 12 o'clock, 3 o'clock, 6 o'clock, 9 o'clock | 6 | 3, 4 | Standard | Contact Sales | ||
| F348 | 500 | 18 | 24 | 6 | Crank away, Crank towards, Flat | Nut | Bright Chrome | Conical | 12 o'clock, 3 o'clock, 6 o'clock, 9 o'clock | 14 | 1, 3, 4, 8 | Shuttered | Contact Sales | ||
| F356 | 2000 | 18 | 24 | 6 | Crank away, Crank towards, Flat | Screw | Bright Chrome | Conical | 12 o'clock, 3 o'clock, 6 o'clock, 9 o'clock | 14 | 1, 3, 4, 8 | Standard | Contact Sales | ||
| F357 | Nut mounting | 2000 | 18 | 24 | 6 | Crank away, Crank towards, Flat | Screw | Bright Chrome | Conical | 12 o'clock, 3 o'clock, 6 o'clock, 9 o'clock | 14 | 1, 3, 4, 8 | Shuttered | Contact Sales |
Standard Features
- Standard movements: 1, 3, 4, 8 (F334 3, 4 only)
- Lock Combinations: 500-2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- ‘L’ Dimension: Body Length
- Dimension ‘B’ Specification: See Cams
Additional Information
15.5mm - 22.2mm Cam Lock 0706 technical drawing
