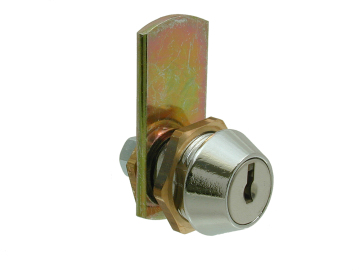

13mm Key Operated IP65 Cam Lock B49
A 13mm key operated cam lock B49 in bright chrome. An ‘O’ ring prevents water from penetrating into the application through the lock mechanism. It is essential for the customer to fit a sealing ring between the head of the lock and the door of the application. This lock is IP65 rated making it ideal for use on applications such as Enclosures and Mail Boxes.
Lock Description
Have a question?
Lock Options
| Product Code | Key Series | Body Length | Head Width | Head Depth | Finish | Head Shape | IP65 | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| B49 | 13 | 26 | 9.3 | Bright Chrome | Conical | Yes | 5 | Contact Sales |
Standard Features
- Standard movements: 3, 9
- Lock Combinations: Refer to sales department
- Standard finish: Bright chrome
- Panel thickness: 5mm
- Mounting hole shape: Double D
- Standards: NF.C. 20010 April 1977 IPF 559 (French); IP65
- Removable barrel system: Refer to sales department
- Dimension ‘B’ specification: See Cams
Additional Information
13mm Key Operated IP65 Cam Lock B49 technical drawing
