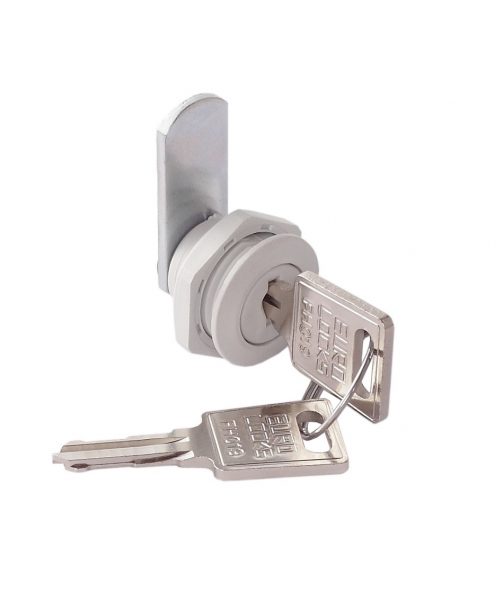

13.5mm Cam Lock P451
A 13.5mm cam lock P451 available in plastic RAL 7035 with a double D mounting shape. This cam lock is manufactured from plastic to minimise the risk of electrocution when used on Enclosures, and also makes it ideal for use in hygiene applications such as lockable soap dispensers and paper towel dispensers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Head Shape | Max Panel Thickness | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| P451 | 200 | 13.5 | 21 | 2.5 | Round | 6 | 3 | Contact Sales |
Standard Features
- Standard movements: 3
- Lock Combinations: 200
- Standard finish: Plastic RAL 7035
- Mounting hole shape: Double D
- Panel fixing: Nut
- M Keyed system supplied to order only
- FH019 key code to order
- Comprehensive range of Cams available: See Cams
Additional Information
13.5mm Cam Lock P451 technical drawing
