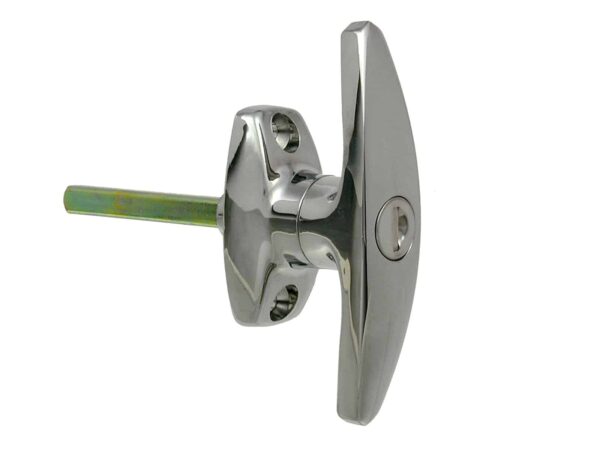

12mm T-Handle 1638
A range of 12mm T-handles available in epoxy, bright chrome or electrophoretic. Handles 1627, 1628 and 1879 have the option of a caulking cam which makes it ideal for windows, doors and shutters or anywhere a seal is required.
Lock Options
| Product Code | Key Series | Combinations | Handle Depth | Cam Type | Handle Height | Lock Type | Mounting | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| 1617 | 200 | 44.5 | 101 | Locking | Shuttered | Contact Sales | |||
| 1625 | 44.5 | 101 | Non-Locking | Standard | Contact Sales | ||||
| 1626 | 44.5 | 101 | Fixed | Standard | Contact Sales | ||||
| 1627 | 200 | 44.5 | Caulking | 101 | Locking | Shuttered | Contact Sales | ||
| 1628 | 44.5 | Caulking | 101 | Non-Locking | Standard | Contact Sales | |||
| 1638 | 200 | 44.5 | 101 | Locking | Shuttered | Contact Sales | |||
| 1639 | 44.5 | 101 | Non-Locking | Standard | Contact Sales | ||||
| 1640 | 44.5 | 101 | Fixed | Standard | Contact Sales | ||||
| 1717 | 2000 | 44.5 | 101 | Locking | Shuttered | Contact Sales | |||
| 1738 | 2000 | 44.5 | 101 | Locking | Shuttered | Contact Sales | |||
| 1877 | 1000 | 44.5 | 101 | Locking | Shuttered | Contact Sales | |||
| 1878 | 1000 | 44.5 | 101 | Locking | Shuttered | Contact Sales | |||
| 1879 | 1000 | 44.5 | Caulking | 101 | Locking | Shuttered | Contact Sales |
Standard Features
- Lock Combinations: 200 – 2,000
- Standard finish: Epoxy, bright chrome, electrophoretic
- Mounting hole shape: Round with screw fixing (see technical drawing)
- M Keyed system supplied to order only
- Click the link for details on accessories, handle movements and spindles
Additional Information
12mm T-Handle 1638 technical drawing
