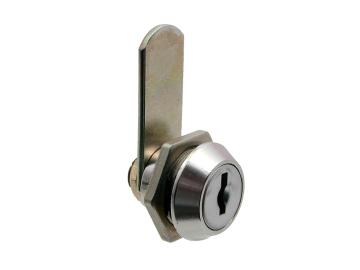

12mm Cam Lock 0604
A range of 12mm cam locks available in bright chrome or nickel plated with a double D mounting hole shape. These cam locks are ideal for various applications including Asset Security and Heavy Duty Vehicles.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0307 | 200 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 5 | Standard | Contact Sales | |
| 0308 | 200 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 3.2 – 7 | Standard | Contact Sales | |
| 0603 | 200 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 5 | Standard | Contact Sales | |
| 0604 | 200 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 3.2 – 7 | Standard | Contact Sales | |
| 0703 | 500 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 5 | Standard | Contact Sales | |
| 0704 | 500 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 3.2 – 7 | Standard | Contact Sales | |
| B856 | 200 | 12 | 24 | 6 | Spun On | Nickel Plated | Conical | 1.6 – 5.5 | Standard | Contact Sales | |
| F122 | 500 | 12 | 24 | 6 | Nut | Bright Chrome | Conical | 5 | Shuttered | Contact Sales | |
| F285 | Contact sales | 12 | 24 | 6 | Screw | Nickel Plated | Conical | 3.2 | Standard | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 8, 9 (Across flats fixing not possible with movements 8, 9)
- Lock Combinations: 200-500
- Standard finish: Bright chrome, nickel plated
- Mounting hole shape: Double D (size variations refer to technical drawing)
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
12mm Cam Lock 0604 technical drawing
