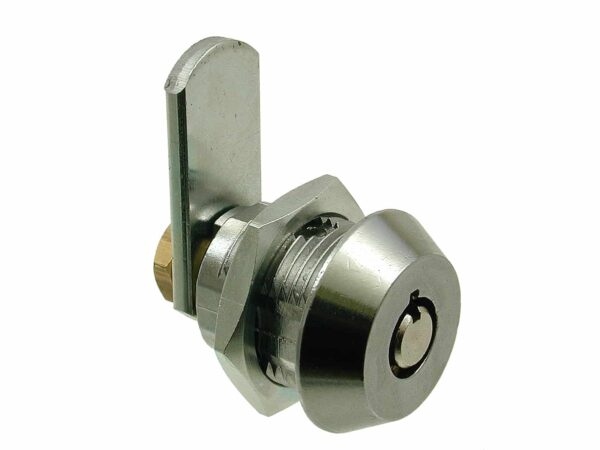

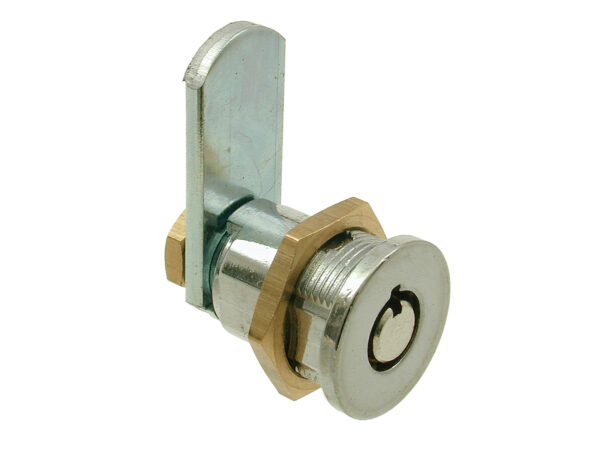

12mm – 30mm Radial Pin Tumbler Cam Lock 4304
A range of 12mm to 30mm radial pin tumbler cam locks in bright chrome. This lock has an optional 10-pin mechanism and anti-drill feature on request making it ideal for applications such as Asset Security or anywhere high security is required.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | P Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 4303-0100 | 10000 | 18 | 22.2 | 5.6 | Bright Chrome | Conical | 3.5 | 7.2 | Contact Sales | |
| 4303-5100 | 2000 | 18 | 22.2 | 5.6 | Bright Chrome | Conical | 3.5 | 7.2 | Contact Sales | |
| 4304-0100 | 10000 | 22.7 | 22.2 | 5.6 | Bright Chrome | Conical | 5 – 7.5 | 12 | Contact Sales | |
| 4304-5100 | 2000 | 22.7 | 22.2 | 5.6 | Bright Chrome | Conical | 5 – 7.5 | 12 | Contact Sales | |
| 4314-0100 | 10000 | 30 | 22.2 | 5.6 | Bright Chrome | Conical | 5 – 7.5 | 21 | Contact Sales | |
| 4314-5100 | 2000 | 30 | 22.2 | 5.6 | Bright Chrome | Conical | 7.5 – 9 | 21 | Contact Sales | |
| 4322-0100 | 10000 | 21.2 | 22.2 | 2.4 | Bright Chrome | Cylindrical | 6 – 8 | 7.2 | Contact Sales | |
| 4322-5100 | 2000 | 21.2 | 22.2 | 2.4 | Bright Chrome | Cylindrical | 6 – 8 | 7.2 | Contact Sales | |
| 4801-0100 | 10000 | 22.2 | 28 | 7.2 | Bright Chrome | Conical | 12 | Contact Sales | ||
| 4902-0100 | 10000 | 12 | 22.2 | 5.6 | Bright Chrome | Conical | 1.5 | 2 | Contact Sales |
Standard Features
- Standard movements: 1 – 20 (see RPT Lock Movements)
- Lock combinations: 2,000-10,000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- Mounting hole size 22.2mm x 19.2mm: 4801 only
- 10-Pin mechanism: Available on request
- Anti-drill feature: Available on request
- 4303-0100: Master available on request
- Dimension ‘X’: Body Length (see Lock Options above)
- Dimension ‘P’: See Lock Options
- Max panel thickness: See Lock Options and state when ordering
- Dimension ‘B’ specification: See Cams
Additional Information
12mm - 30mm Radial Pin Tumbler Cam Lock 4304 technical drawing
