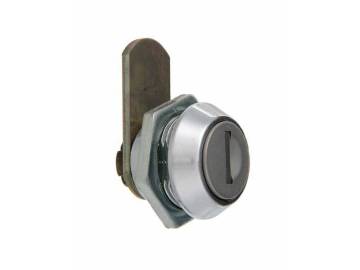

12.6mm Cam Lock F450
A 12.6mm cam lock F450 available in bright chrome. Equipped with a dust cover, the barrel can also be assembled with a round gasket on request.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F450 | 500 | 12.6 | 24 | 6 | Circlip | Dust Cover | Bright Chrome | Conical | 5 | Contact Sales | |
| F466 | 500 | 12.6 | 24 | 6 | Screw + Washer | Dust Cover | Bright Chrome | Conical | 5 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 8
- Lock Combinations: 500
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ & ‘X’ Specification: See Cams
Additional Information
12.6mm Cam Lock F450 technical drawing
