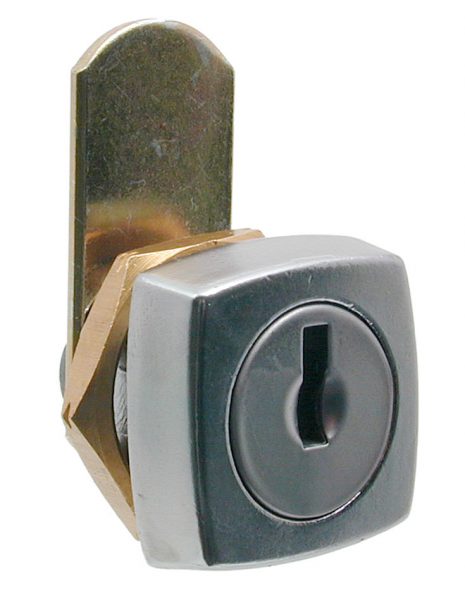

11mm Cam Lock 1363
A range of 11mm cam locks available in bright chrome with a double D mounting hole shape. Ideal cam locks for many applications including Metal and Wooden Office Furniture and Automotive Accessories.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1330 | 200 | 11 | 24 | 7 | Riveted | Bright Chrome | Square | 4 | Contact Sales | |
| 1331 | 200 | 11 | 24 | 7 | Riveted | Bright Chrome | Square | 7 & 3.2 | Contact Sales | |
| 1363 | 200 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 4 | Contact Sales | |
| 1364 | 200 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 7 & 3.2 | Contact Sales | |
| 1463 | 2000 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 4 | Contact Sales | |
| 1464 | 2000 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 7 & 3.2 | Contact Sales | |
| 4264 | 2000 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 7 & 3.2 | Contact Sales | |
| 4663 | 200 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 4 | Contact Sales | |
| 4664 | 200 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 7 & 3.2 | Contact Sales | |
| 4763 | 500 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 4 | Contact Sales | |
| 4764 | 500 | 11 | 24 | 7 | Circlip | Bright Chrome | Square | 3.2, 7 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 5, 6, 7 (Across flats not possible with movements 5, 6)
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ & ‘X’ Specification: See Cams
Additional Information
11mm Cam Lock 1363 technical drawing
