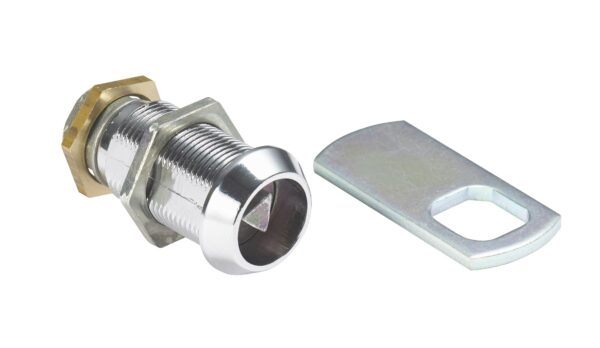

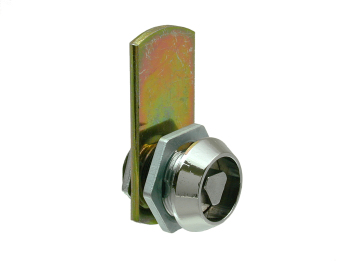

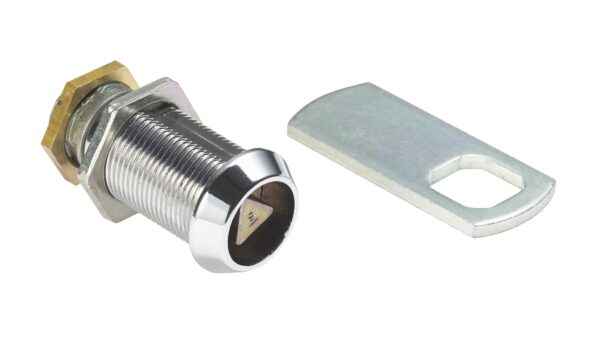

11mm – 33mm Tool Operated IP66 Cam Lock F48
A range of 11mm or 33mm tool operated cam locks available in bright chrome. Some of these locks have a compression spring and all are IP66 water resistant making them ideal for use on outdoor applications such as Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Body Length | Head Width | Head Depth | Compression Sprint | Finish | Head Shape | IP66 | Key Number | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F146 | 33 | 24 | 6 | Yes | Bright Chrome | Conical | Yes | F8412-T9M | 8 | Contact Sales | |
| F174 | 33 | 24 | 6 | Yes | Bright Chrome | Conical | Yes | F8412-T8M | 8 | Contact Sales | |
| F274 | 33 | 24 | 6 | No | Bright Chrome | Conical | Yes | F8412-C8M | 8 | Contact Sales | |
| F445 | 33 | 24 | 6 | Yes | Bright Chrome | Conical | Yes | F8074 | 8 | Contact Sales | |
| F48 | 11 | 24 | 6 | No | Bright Chrome | Conical | Yes | F8412-T8M | 8 | Contact Sales | |
| F504 | 11 | 24 | 6 | No | Bright Chrome | Conical | Yes | F8412-C7M | 8 | Contact Sales | |
| F7B | 33 | 24 | 6 | Yes | Bright Chrome | Conical | Yes | 8 | Contact Sales |
Standard Features
- Standard movements: 8
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- IP66 rated
- Dimension ‘L’ specification: Body Length
- Dimension ‘B’ specification: See Cams
- Compression Spring: F7B, F174, F146 and F445
Additional Information
11mm - 33mm Tool Operated IP66 Cam Lock F48 technical drawing
