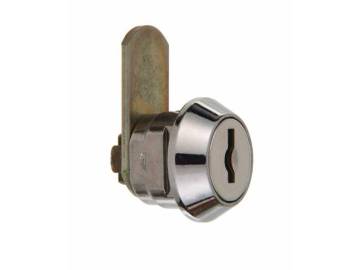

11.1mm Cam Lock F216
A series of 11.1mm cam locks in bright chrome or nickel with a double D mounting hole shape. Cam locks F306 and F311 can be supplied with a dust cover making them ideal for applications such as Asset Management and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F216 | 500 | 11.1 | 24 | 6.9 | Circlip | Capped | Bright Chrome | Conical | 1.2 – 4 | Contact Sales | |
| F306 | 500 | 11.1 | 24 | 6.9 | Circlip | Dust Cover | Bright Chrome | Conical | 1.2 – 4 | Contact Sales | |
| F311 | 500 | 11.1 | 24 | 6.9 | Circlip | Dust Cover | Bright Chrome | Conical | 1.2 – 4 | Contact Sales | |
| F316 | 500 | 11.1 | 24 | 6.9 | Circlip | Nickel | Conical | 1.2 – 4 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4
- Lock Combinations: 500
- Standard finish: Bright chrome or Nickel
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ & ‘X’ Specification: See Cams
Additional Information
11.1mm Cam Lock F216 technical drawing
