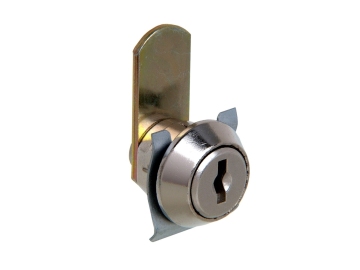

11.1mm – 12.6mm Cam Lock F378
A range of 11.1mm and 12.6mm cam locks in bright chrome or nickel with a double D mounting hole shape. These are ideal cam locks for many applications including Metal and Wooden Office Furniture.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | A Dimension | B Dimension | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F378 | 500 | 11.1 | 24 | 6.9 | 15.5 | 6.9 | Nickel | Conical | 2 | Contact Sales | |
| F399 | 200 | 11.1 | 21.5 | 4.4 | 18.3 | 4.4 | Nickel | Conical | 3 | Contact Sales | |
| F416 | 2000 | 12.6 | 24 | 6.9 | 18.8 | 6.9 | Chrome | Conical | 2 or 5 | Contact Sales | |
| F418 | 200 | 11.1 | 21.5 | 4.4 | 15.5 | 4.4 | Chrome | Conical | 3 | Contact Sales | |
| F423 | 200 | 11.1 | 21.5 | 4.4 | 15.5 | 4.4 | Nickel | Conical | 2 | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4 (F416); 3, 4 (F418, F39, F378, F423, F424)
- Lock Combinations: 200-2000
- Standard finish: Chrome, nickel
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Lock fixing: F416 available with nut (5mm) or horseshoe clip (2mm panel)
Additional Information
11.1mm - 12.6mm Cam Lock F378 technical drawing
