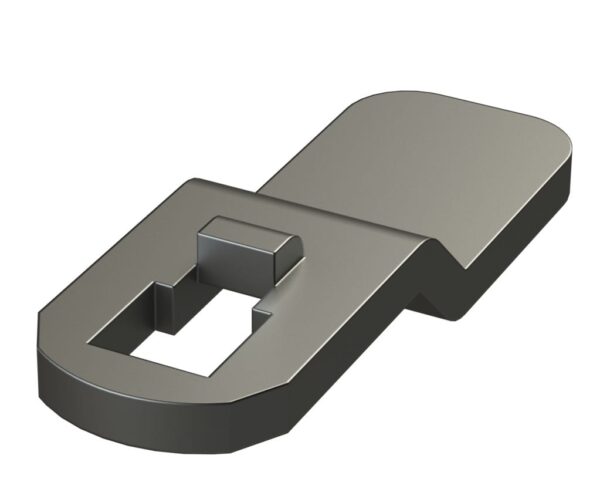

1-Point Cams
This range of 1-point cams can be used as a standlone locking mechanism for our swing handles or can be used in conjunction with our rod control system to create a complete locking system.
Lock Description
For further information and guidance on which Rods and accessories are available please see the Program Scheme.
Have a question?
Lock Options
| Product Code | Finish | Inquire |
|---|---|---|
| 1-Point Cam | Zinc Plate | Contact Sales |
Standard Features
- Material: Steel
- Finish: Zinc plated
Additional Information

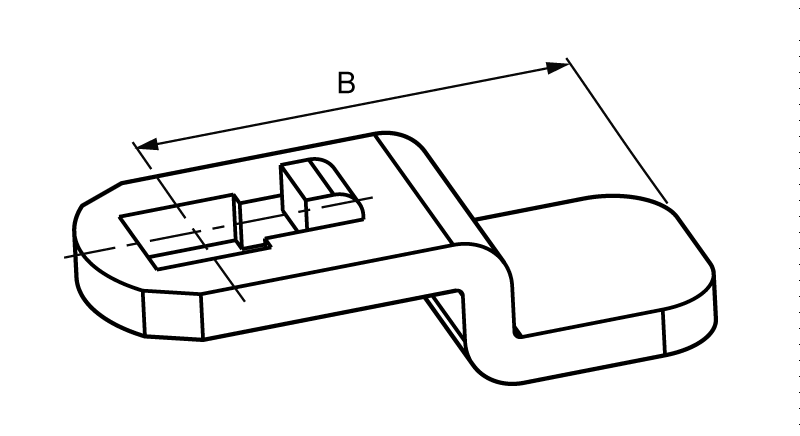

1-Point Cams technical drawing
| Fixing Hole | Steel Dimension (mm) | Type of crank | A Dimension (mm) | B Dimension (mm) | Additional bending | ||||||||||||||||||||||

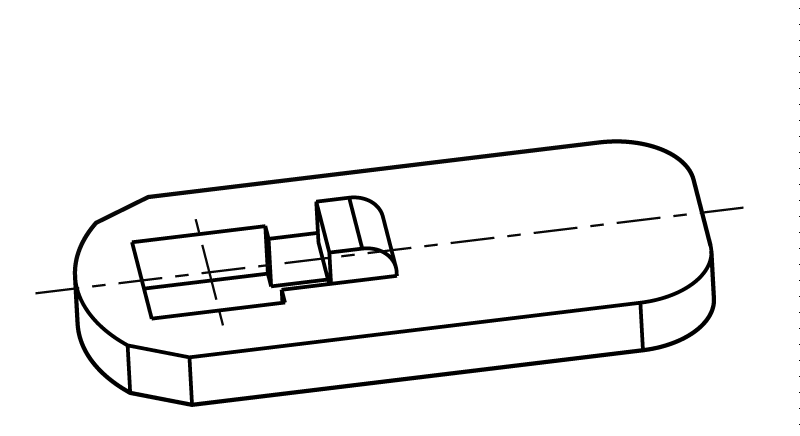

| E | 7 | 17 x 3,5 | 1 | Dim ‘A’ expressed in 1 / 64 = 0,4 mm | DB | ||||||||||||||||||||||
 |
 |
 |
 |
 |
|||||||||||||||||||||||

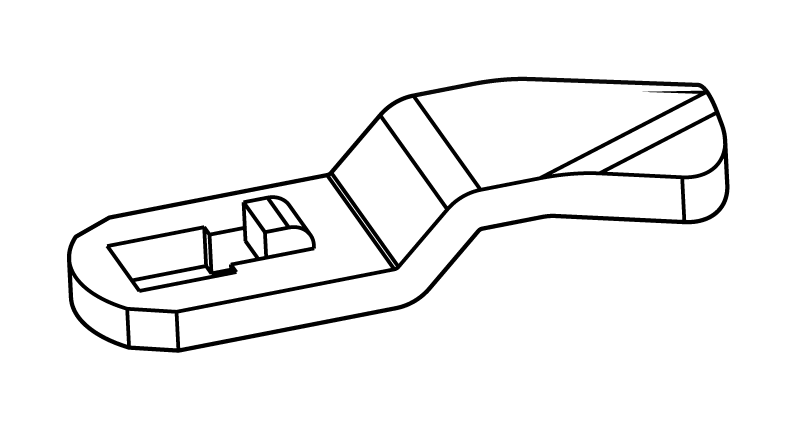

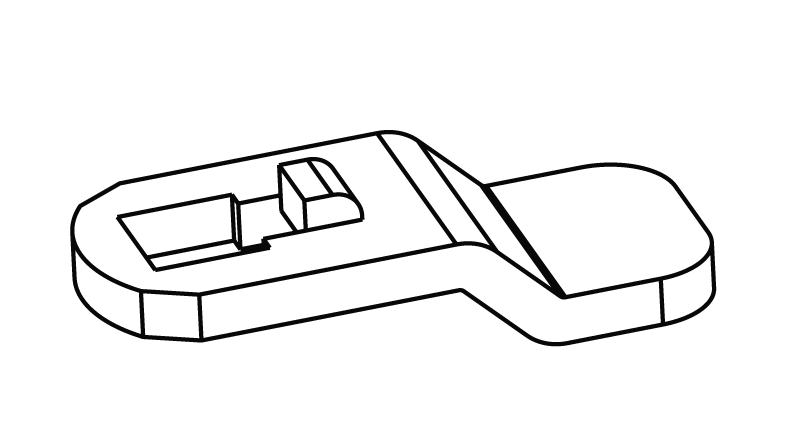

| 3 | DX | ||||||||||||||||||||||||||
 |
recommended angle 90° |
 |
|||||||||||||||||||||||||
| 4 | |||||||||||||||||||||||||||
|
NOTE: 45° crank
Min B dimension 34 mm without DB or DX Min B dimension 45 mm with DB or DX NOTE: 90° crank Min B dimension 30 mm without DB or DX Min B dimension 45 mm with DB or DX |
||||||||||||||||||||||||||

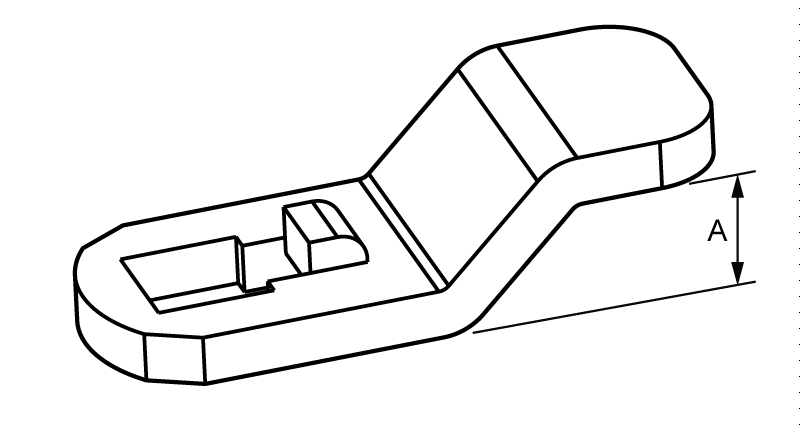

| A | |||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
| B | |||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
| Examples | |||||||||||||||||||||||||||
| E | 7 | 4 | 20 | 45 | DB | ||||||||||||||||||||||
| E | 7 | 3 | 06 | 45 | DB | ||||||||||||||||||||||
| Locking Mechanism | Rods (must select one) | Cam Cover | Cam Adapter | Rod Guide | Dual Roller Catch | Rod Adapter | |
| 1-Point Cam only | P3150 (7) | P3149 (8) | |||||
| Rod control system with 1-point cam |
PR10-A-B-L | P3152 (5) | W106 (20) | ||||
| PR11-A-B-L | P3152 (5) | W106 (20) | |||||
| PR2-M-K-L | P3152 (5) | W106 (20) | W102 (19) | ||||
| PR3803-A-B-L | P3152 (5) | W108-2 (15) | W105 (17) | ||||
| PR3611-L | P3152 (5) | W109-1 (16) or W108-1 | |||||
| PR3612-L | P3152 (5) | W109-1 (16) or W108-1 | |||||
| PR3811-L | P3152 (5) | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | ||||
| PR3801-L | P3152 (5) | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 |
